x86 Mini CPU Simulator

A 16-bit CPU simulator with a custom ISA, assembler-style parser, and graphical debugger

A lightweight 16-bit CPU simulator I built with:

custom ISA (register file, flags, stack, branches, ALU ops),
an assembler-style parser (labels, immediates, [mem], [reg+reg]),
a step/run debugger UI (register/memory/flags view).

Source:

🧩 Core: cpu.cpp, cpu.h
🧩 Parser: parser.cpp, parser.h
🔗 Repo: https://github.com/B1gF1sh/x86-MINI_SIM

Screens

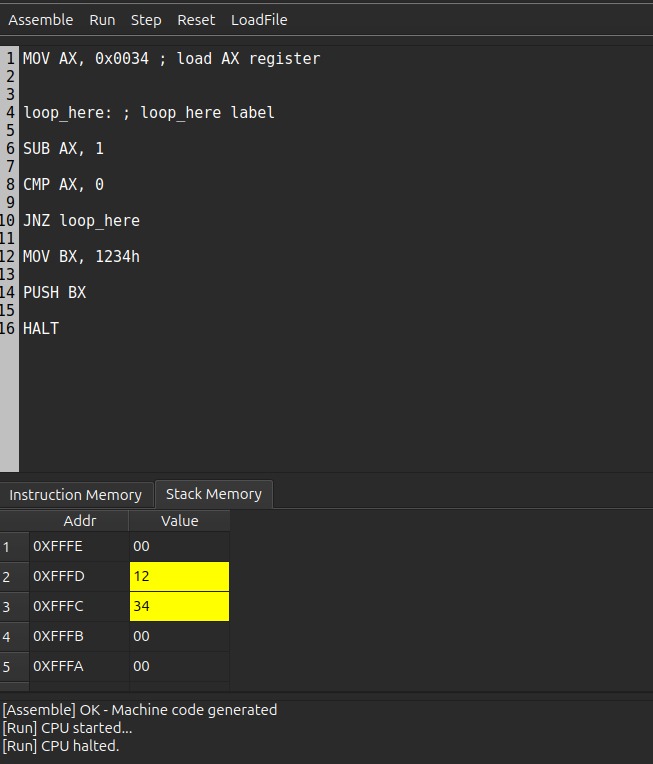

GUI – registers, flags, memories

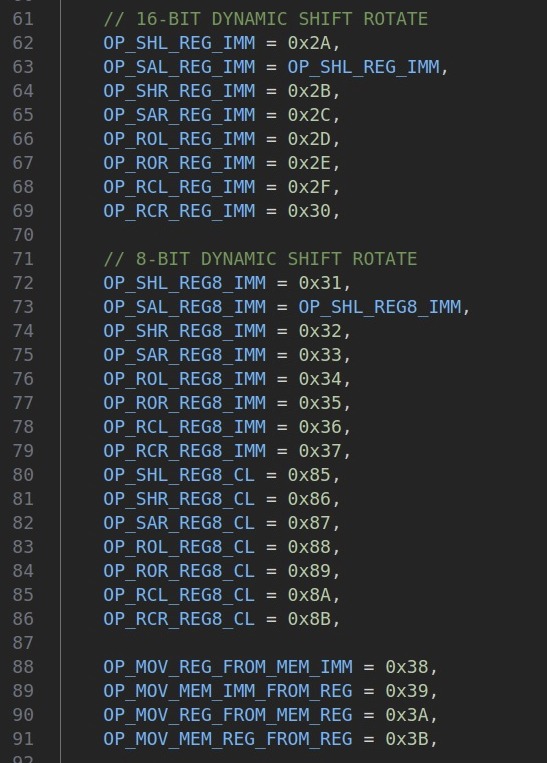

Instruction set overview

Key Features

Registers: AX, BX, CX, DX, MNK + SP, BP, SI, DI, IP
Flags: CF, ZF, SF, OF
Memory: byte/word read-write, stack via SP
Addressing: imm, [imm], [reg], [reg+reg], 8-bit/16-bit variants
Control flow: CALL/RET, JMP, JZ/JNZ, JC/JNC, JS/JNS, JO/JNO
ALU: ADD/SUB/ADC/SBB, AND/OR/XOR/NOT/NEG, shifts/rotates (imm & CL)
Move forms: reg↔reg, reg↔mem, imm→reg/mem (8/16-bit)

Example (store & compare)

; Write 0x1234 into memory[0x0031], read back, compare, branch
MOV AX, 1234h
MOV [0031h], AX
MOV BX, [0031h]
CMP AX, BX
JZ OK
HALT
OK:
CALL PRINT
RET

two pass parser for labels first pass address decoding → second pass code production.

How it works (very short)

CPU::run/step() decodes related opcodes and calls; write_mem* / read_mem* and flag update helpers.
Parser parses operand types (REG16/REG8/IMM/MEM/REG+REG/LABEL), writes the correct opcode sequence.

Build / Run

```bash g++ -std=c++17 -O2 cpu.cpp parser.cpp -o cpu_sim ./cpu_sim
